Overview

The generalInvoiceResponse module provides all the necessary tools for loading and thereafter analyzing general invoice XML infosets. These infosets are responses to a previously sent invoices or reminders where the topmost object reference defines target request/response.

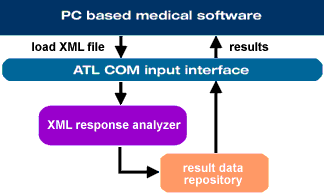

Architectural blueprint

To get the results of such an infoset, firstly the XML file is loaded into the module by the IGeneralInvoiceResponseManager::LoadXML method. Upon successful analyzing the file the method returns a IGeneralInvoiceResponse interface. All response data and parameters of one invoice can be retrieved by the supplied interface methods as e.g. IGeneralInvoiceResponse:GetPatient,...

The IGeneralInvoiceResponseManager::Print method can be used to visualize the whole response content.

Please also have a look at the Important Documents that serves as a jump start and might effect the ease of the implementation.

Get started with
Important Documents

Keyfacts at a glance

Version 450
Last update:	Wednesday, 16 March 2022 - 17:40:31
Module version/date:	4.50.004	16 Mar 2022
Interface version/date:	4.50	2 Sep 2016
Covering:	XML schema 4.50 from 02. Sept. 2016

Version 440
Last update:	Wednesday, 16 March 2022 - 17:38:31
Module version/date:	4.40.007	16 Mar 2022
Interface version/date:	4.40	15 Mar 2013
Covering:	XML schema 4.40 from 1. Jan. 2013

Version 430
Last update:	Monday, 21 January 2019 - 14:38:02
Module version/date:	4.30.006	21 Jan 2019
Interface version/date:	4.30	26 Aug 2010
Covering:	XML schema 4.30 from 26 Aug. 2010

API browser

The online documentation browser allows you to browse, view, and check the various interfaces, methods und properties of the Dll. Please note, that this documentation is included in the full installer in form of a .CHM file.

Date	Time	API version
16.10.17	11:31:10	V4.50: View API browser
16.10.17	11:31:10	V4.50: Download API browser .CHM file

16.10.17	11:32:09	V4.40: View API browser
16.10.17	11:32:09	V4.40: Download API browser .CHM file

16.10.17	11:33:01	V4.30: View API browser
16.10.17	11:33:01	V4.30: Download API browser .CHM file

Download area for generalInvoiceResponse related files

Parameters for a silent install / uninstall process

Installation directory:
    INSTALLDIR=full_path_to_install_dir

Silent install:
    generalInvoiceResponseInstaller.exe /s /v"/quiet INSTALLDIR=\"c:\my test\" "

Silent uninstall:
    generalInvoiceResponseInstaller.exe /s /v"/quiet REMOVE=ALL INSTALLDIR=\"c:\my test\" "

Date	Version	Description
16.03.22	4.50.004	GeneralInvoiceResponseManager with a XML feature update - cf. history Download GeneralInvoiceResponseManager installer (17.6 MB)
		Revision history This is a feature update, that does allow to read and analyze XML infosets without the named namespace prefix 'invoice:'. The corresponding XSD qualifies each element with elementFormDefault='qualified', that make XML files without a named namespace schema in effect invalid. However, it seems that such files are produced and this feature update allows to successfully overcome this error. Actions for developers: none Actions for end users: install
show older builds ...
21.01.19	4.50.003	GeneralInvoiceResponseManager installer with cumulative updates - cf. history
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: Update of the code part responsible for the QR code production and layout. This update became necessary due to standardization change published by the QR standardization body. The updated code now produces standard compliant QR invoices that becomes normative beginning mid of 2020 Performance optimization of the logging management regarding the recycling process when reaching the high water mark of the logfile. This change improves the performance of the recycling process having an effect primarily for a massive multi-threaded environment. Bug fix occuring in rare cases when an interface error is signalled but the error message is returned empty in GetAbortInfo() Actions for developers: none Actions for end users: install
04.07.18	4.50.002	GeneralInvoiceResponseManager installer with code improvements - cf. history
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list: Bug fix of the printing engine not showing certain print objects like Datamatrix/QR codes when running the COM dll under a service environment. Revised/optimised logging regarding the binding to the interface instance has been implemented. This change improves analysis in a massive multi-threaded environment. Revised error management (enhanced binding to the interface instance) suitable for a massive multi-threaded environment The processing of a XML file is done in two passes due to memory and performance considerations. Any Base64 attachments are extracted and saved separately beforehand the basis XML data are loaded into the DOM. When splitting up these Base64 files a bug occurring with very small attachments was fixed. Actions for developers: none Actions for end users: install
09.06.17	4.50.001	generalInvoiceResponseManager installer - initial version
		Revision history Initial version V4.50 Please read the document "Changes from V4.40 to V4.50..." for an overview about the major changes Actions for developers: implement Actions for end users: install

Date	Version	Description
16.03.22	4.40.007	GeneralInvoiceResponseManager GeneralInvoiceResponseManager with a XML feature update - cf. history Download GeneralInvoiceResponseManager installer (17.3 MB)
		Revision history This is a feature update, that does allow to read and analyze XML infosets without the named namespace prefix 'invoice:'. The corresponding XSD qualifies each element with elementFormDefault='qualified', that make XML files without a named namespace schema in effect invalid. However, it seems that such files are produced and this feature update allows to successfully overcome this error. Actions for developers: none Actions for end users: install
show older builds ...
21.01.19	4.40.006	GeneralInvoiceResponseManager installer with cumulative updates - cf. history
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: Performance optimization of the logging management regarding the recycling process when reaching the high water mark of the logfile. This change improves the performance of the recycling process having an effect primarily for a massive multi-threaded environment. Bug fix occuring in rare cases when an interface error is signalled but the error message is returned empty in GetAbortInfo() Actions for developers: none Actions for end users: install
04.07.18	4.40.005	GeneralInvoiceResponseManager installer with code improvements - cf. history
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list: Revised/optimised logging regarding the binding to the interface instance has been implemented. This change improves analysis in a massive multi-threaded environment. Revised error management (enhanced binding to the interface instance) suitable for a massive multi-threaded environment The processing of a XML file is done in two passes due to memory and performance considerations. Any Base64 attachments are extracted and saved separately beforehand the basis XML data are loaded into the DOM. When splitting up these Base64 files a bug occurring with very small attachments was fixed. Actions for developers: none Actions for end users: install
06.07.16	4.40.004	generalInvoiceResponseManager installer with code improvements
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list A cleanup task for temporary files has been added. In fact, all files temporary generated are deleted once the main interface is shut down. However, there are situations where files are still locked at shutdown and thus are not deletable at that moment. As a remedy, the cleanup task is started periodically to check for files older than 5 days that are deleted eventually. The detection of signed and/or encrypted XML files was improved such that the security library is loaded and initialized on demand. This measure ensures a better performance while stabilizing security library usage Actions for developers: none Actions for end users: install
08.12.15	4.40.003	generalInvoiceResponseManager installer with enhanced handling of non-UTF8 response files.
		Revision history The following code enhancements have been applied as given by the list Check and possibly transform XML infosets to UTF-8 prior to be loaded into the DOM. This safety measure became necessary as various XML response files are delivered to providers written in wrong codepages, mainly ACSII. Actions for developers: none Actions for end users: install
02.07.15	4.40.002	generalInvoiceResponseManager installer with code improvements and bug fixes
		Revision history Internal bug fixes and code enhancements as given by the following list The code for getting a proper working directory was improved by taking into account more than one possible location (AppDATA and TempPath) Actions for developers: none Actions for end users: install
09.04.13	4.40.001	generalInvoiceResponseManager installer - initial version
		Revision history Initial version V4.40 Actions for developers: implement Actions for end users: install

Date	Version	Description
21.01.19	4.30.006	The usage of this version is deprecated - use a newer version! GeneralInvoiceResponseManager installer with cumulative updates - cf. history Download GeneralInvoiceResponseManager installer ( 17.3 MB)
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: Performance optimization of the logging management regarding the recycling process when reaching the high water mark of the logfile. This change improves the performance of the recycling process having an effect primarily for a massive multi-threaded environment. Bug fix occuring in rare cases when an interface error is signalled but the error message is returned empty in GetAbortInfo() Actions for developers: none Actions for end users: install
show older builds ...
04.07.18	4.30.005	GeneralInvoiceResponseManager installer with code improvements - cf. history
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list: Revised/optimised logging regarding the binding to the interface instance has been implemented. This change improves analysis in a massive multi-threaded environment. Revised error management (enhanced binding to the interface instance) suitable for a massive multi-threaded environment The processing of a XML file is done in two passes due to memory and performance considerations. Any Base64 attachments are extracted and saved separately beforehand the basis XML data are loaded into the DOM. When splitting up these Base64 files a bug occurring with very small attachments was fixed. Actions for developers: none Actions for end users: install
06.07.16	4.30.004	GeneralInvoiceResponseManager installer with code improvements
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list A cleanup task for temporary files has been added. In fact, all files temporary generated are deleted once the main interface is shut down. However, there are situations where files are still locked at shutdown and thus are not deletable at that moment. As a remedy, the cleanup task is started periodically to check for files older than 5 days that are deleted eventually. The detection of signed and/or encrypted XML files was improved such that the security library is loaded and initialized on demand. This measure ensures a better performance while stabilizing security library usage Actions for developers: none Actions for end users: install
08.12.15	4.30.003	generalInvoiceResponseManager installer with enhanced handling of non-UTF8 response files.
		Revision history The following code enhancements have been applied as given by the list Check and possibly transform XML infosets to UTF-8 prior to be loaded into the DOM. This safety measure became necessary as various XML response files are delivered to providers written in wrong codepages, mainly ACSII. Actions for developers: none Actions for end users: install
02.07.15	4.30.002	generalInvoiceResponseManager installer with code improvements and bug fixes.
		Revision history Internal bug fixes and code enhancements as given by the following list The code for getting a proper working directory was improved by taking into account more than one possible location (AppDATA and TempPath) Actions for developers: none Actions for end users: install
01.04.11	4.30.001	generalInvoiceResponseManager installer - initial version
		Revision history Initial version V4.30 Actions for developers: implement Actions for end users: install
