Sumex1.net/generalCreditResponse: Overview

Overview

The generalCreditResponse module provides all the necessary tools for loading and thereafter analyzing XML infosets of type generalCreditResponse_430. These infosets are responses to a previously sent credit where the topmost object reference defines target request/response. Therefore, generalCreditResponseManager is the logical counterpart of the generalCreditRequestManager.

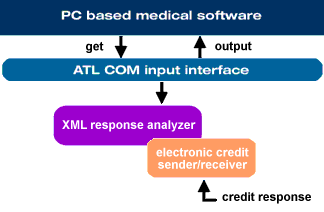

Architectural blueprint

To get the results of such an infoset, firstly the XML file is loaded into the module by the IGeneralCreditResponseManager::LoadXML method. Upon successful analyzing the file the method returns a IGeneralCreditResponse interface. All response data and parameters of one credit can be retrieved by the supplied interface methods as e.g. IGeneralCreditResponse:GetPatient,...

The IGeneralCreditResponseManager::Print method can be used to visualize the whole response content.

Please also have a look at the Important Documents that serves as a jump start and might effect the ease of the implementation.

Get started with
Important Documents

Keyfacts at a glance

Version 430
Last update:	Monday, 21 January 2019 - 14:46:40
Module version/date:	4.30.004	21 Jan 2019
Interface version/date:	4.30	3 Feb 2011
Covering:	XML schema 4.30 from 3. Feb. 2011

API browser

The online documentation browser allows you to browse, view, and check the various interfaces, methods und properties of the Dll. Please note, that this documentation is included in the full installer in form of a .CHM file.

Date	Time	API version
16.10.17	12:08:11	V4.30: View API browser
16.10.17	12:08:11	V4.30: Download API browser .CHM file

Download area for generalCreditResponse related files

Date	Version	Description
21.01.19	4.30.004	GeneralCreditResponseManager installer with cumulative updates - cf. history Download GeneralCreditResponseManager installer ( 17.3 MB)
		Revision history Code enhancements, performance optimization and internal bug fixes have been integrated as given by the following list: Performance optimization of the logging management regarding the recycling process when reaching the high water mark of the logfile. This change improves the performance of the recycling process having an effect primarily for a massive multi-threaded environment. Revised/optimised logging regarding the binding to the interface instance has been implemented. This change improves analysis in a massive multi-threaded environment. Revised error management (enhanced binding to the interface instance) suitable for a massive multi-threaded environment Actions for developers: none Actions for end users: install
show older builds ...
06.07.16	4.30.003	generalCreditResponseManager installer with code improvements.
		Revision history Code enhancements and internal bug fixes have been integrated as given by the following list A cleanup task for temporary files has been added. In fact, all files temporary generated are deleted once the main interface is shut down. However, there are situations where files are still locked at shutdown and thus are not deletable at that moment. As a remedy, the cleanup task is started periodically to check for files older than 5 days that are deleted eventually. The detection of signed and/or encrypted XML files was improved such that the security library is loaded and initialized on demand. This measure ensures a better performance while stabilizing security library usage Actions for developers: none Actions for end users: install
30.03.16	4.30.002	generalCreditResponseManager installer with code improvements.
		Revision history Internal code enhancements have been applied as given by the following list The code for getting a proper working directory was improved by taking into account more than one possible location (AppDATA and TempPath) Actions for developers: none Actions for end users: install
03.08.11	4.30.001	generalCreditResponseManager installer - initial version.
		Revision history Initial V4.3 version Actions for developers: implement Actions for end users: install

	Parameters for a silent install / uninstall
	Installation directory: INSTALLDIR=full_path_to_install_dir Silent install: generalCreditResponseInstaller.exe /s /v"/quiet INSTALLDIR=\"c:\my test\" " Silent uninstall: generalCreditResponseInstaller.exe /s /v"/quiet REMOVE=ALL INSTALLDIR=\"c:\my test\" "
